Please note whether 6.0 mm thick Brake Discs are suitable for your brake caliper!

TK Dischi Freno is known from MotoGP, WSBK and the Italian championship. The Brake Discs are manufactured in Italy. They are built and tested for track use!

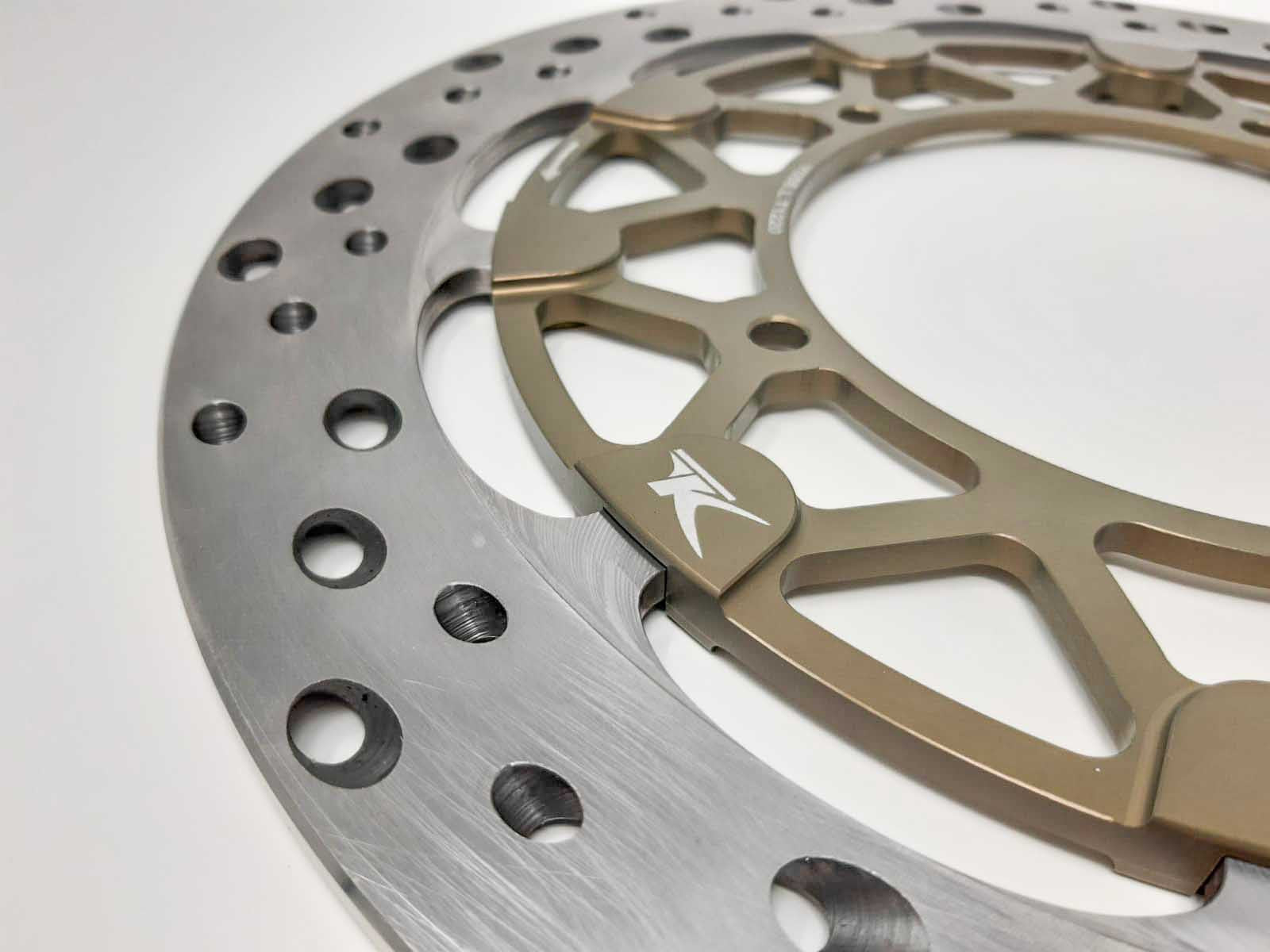

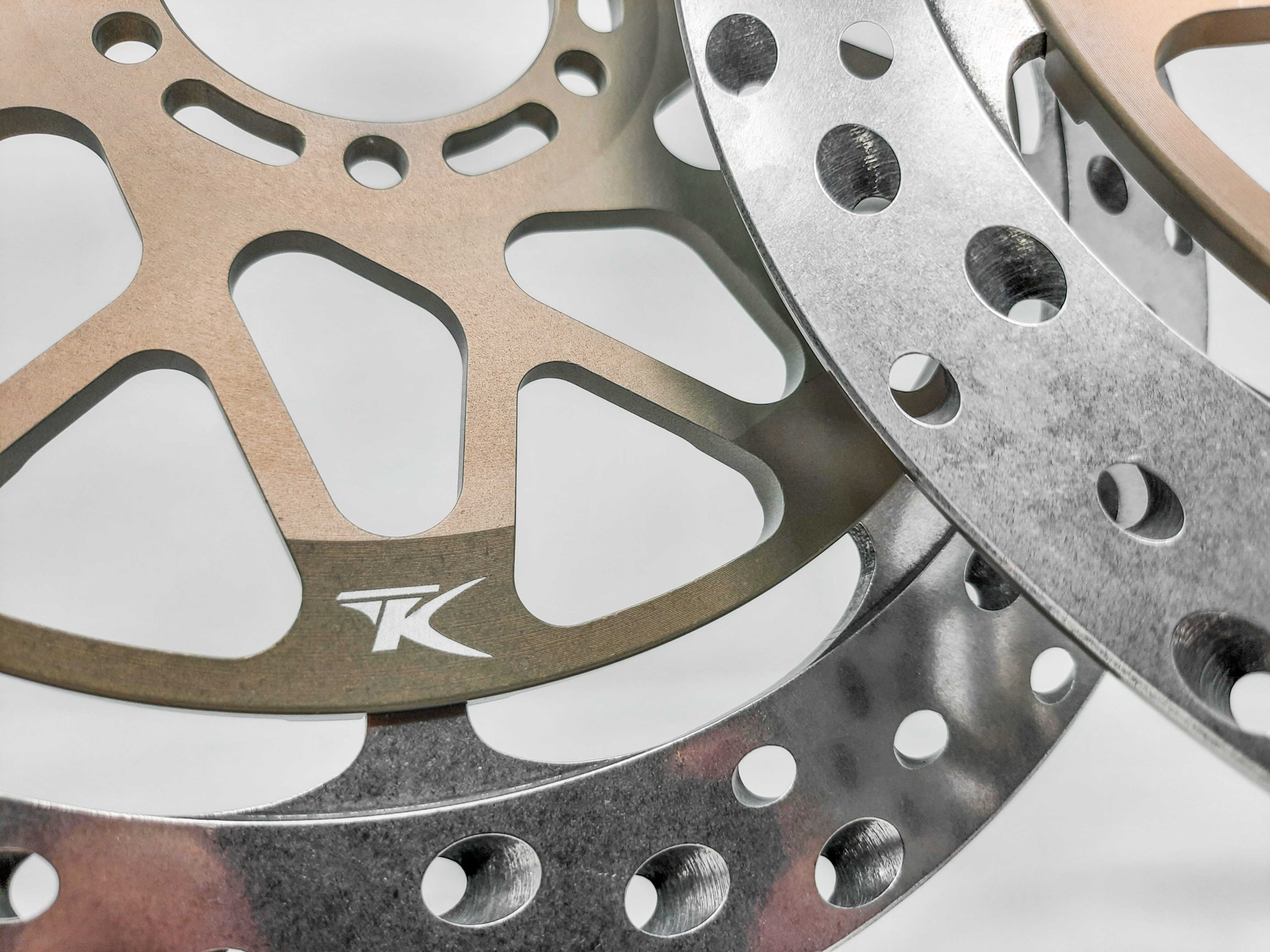

Only high-quality and certified materials are used in the production of the discs! The angled drilled holes slightly increase material removal compared with conventional holes and help reduce weight without losing performance! In addition, the “rotating masses” are reduced; furthermore, the lower weight at the front wheel benefits the rider because it improves handling. The specially drilled holes also have the advantage of a more homogeneous heat distribution (tests carried out showed a temperature reduction of about 20% compared with conventional discs), thereby reducing the so-called “fading”. The drilling also increases the service life of the Brake Pads without losing braking performance!

The distribution of the holes makes braking smoother and increases safety in wet conditions. On the dynamometer and on the track, it has been found that less brake pressure is required to achieve the same deceleration.

The color of the carrier ring can be freely selected! Attention! For the colors red and blue, the delivery time is extended!

Technical data:

Disc Ø: 330 mm (320 mm also available on request)

Inner Ø: --

Holes axis Ø: --

Holes Ø: --

Holes Number: --

Offset mm: --

Thickness mm: 6,0

Friction ring mm: 34

Part numbers:

D08EL_D08ER_SSP6_ha (hard anodized)

D08EL_D08ER_SSP6_b (black)

D08EL_D08ER_SSP6_r (red)

D08EL_D08ER_SSP6_bl (blue)

The scope of delivery includes 2 Brake Discs (left and right)
