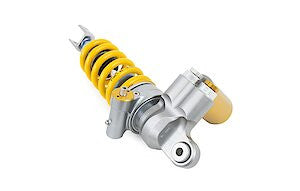

Öhlins TTX GP Spring Ho 568 for Honda CBR1000RR-R and SP (2020–2025)
The Öhlins TTX GP Spring Ho 568 was specifically for the Honda CBR1000RR-R and SP (2020–2025) Developed to offer extraordinary performance and control. The gas pressure dampers with fixed, external reservoir ("Piggy Back") ensures precise damping and maximum stability. With adjustable draft and pressure stages as well as an integrated hydraulic spring preload device, the spring bone can be optimally adjusted. The piston diameter of 36 mm guarantees excellent shelf life and excellent performance.
Technical data:
- Article number: HO 568
- Length: 317 mm (+4/-2 mm)
- Hub: 60 mm
- Rate: 110 N/mm
- Position: Rear
- Feather: 21040-39
- Feder series: 21040-XX
- Packaging unit: Individually
-
Suitable for:
- Honda CBR1000RR-R (2020–2025)-with ABE (Germany)
- Honda CBR1000RR-R SP (2020–2025)-without a partial certificate (Germany), motorsport product, not approved in road traffic. Attention, electronic control of the chassis is set out of function!
Installation instructions are included. For optimal results, we recommend installation by an authorized Öhlin Service Center.
Optimize the performance of your Honda CBR1000RR-R with the Öhlins TTX GP Spring HO 568-for precise control, stability and adaptability!
