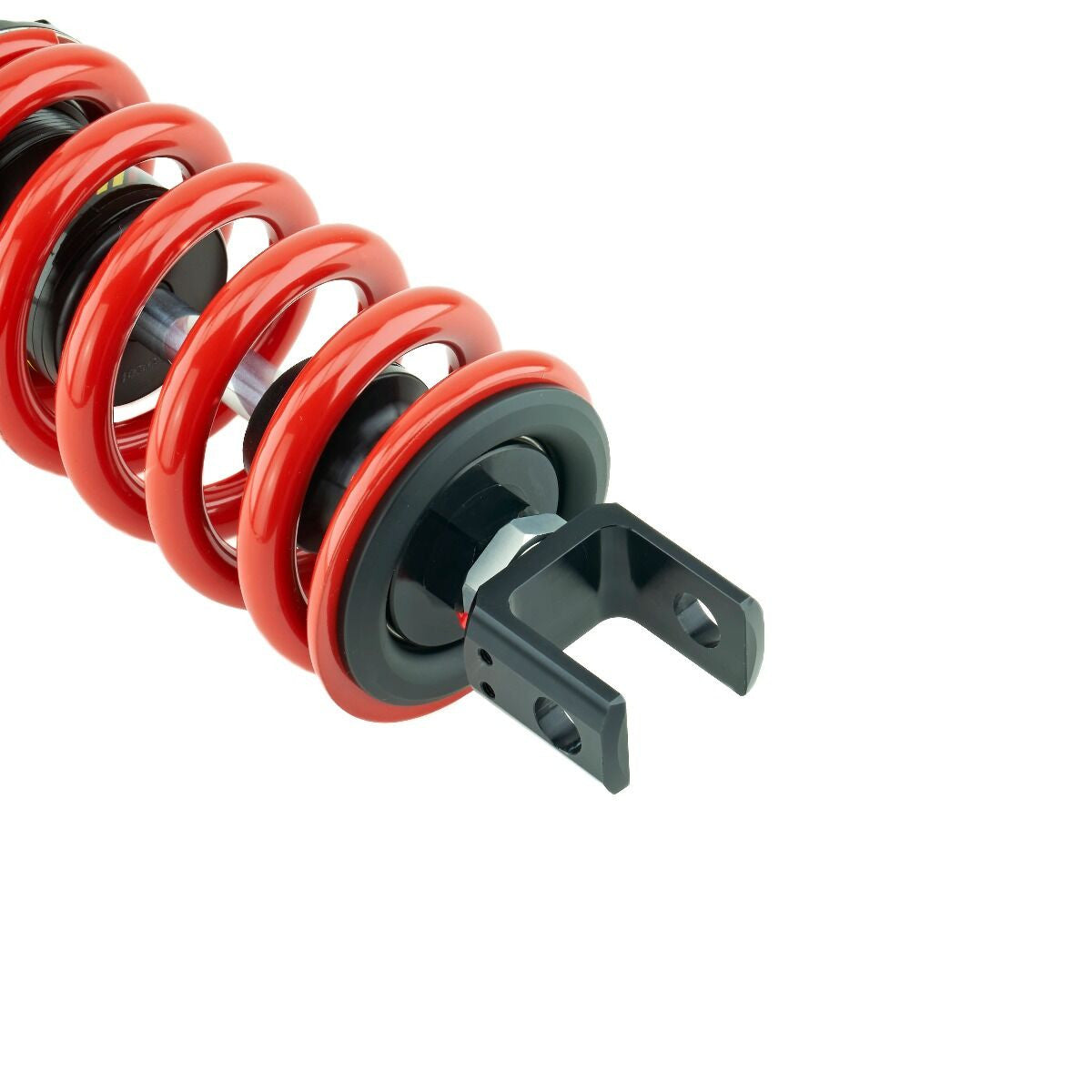

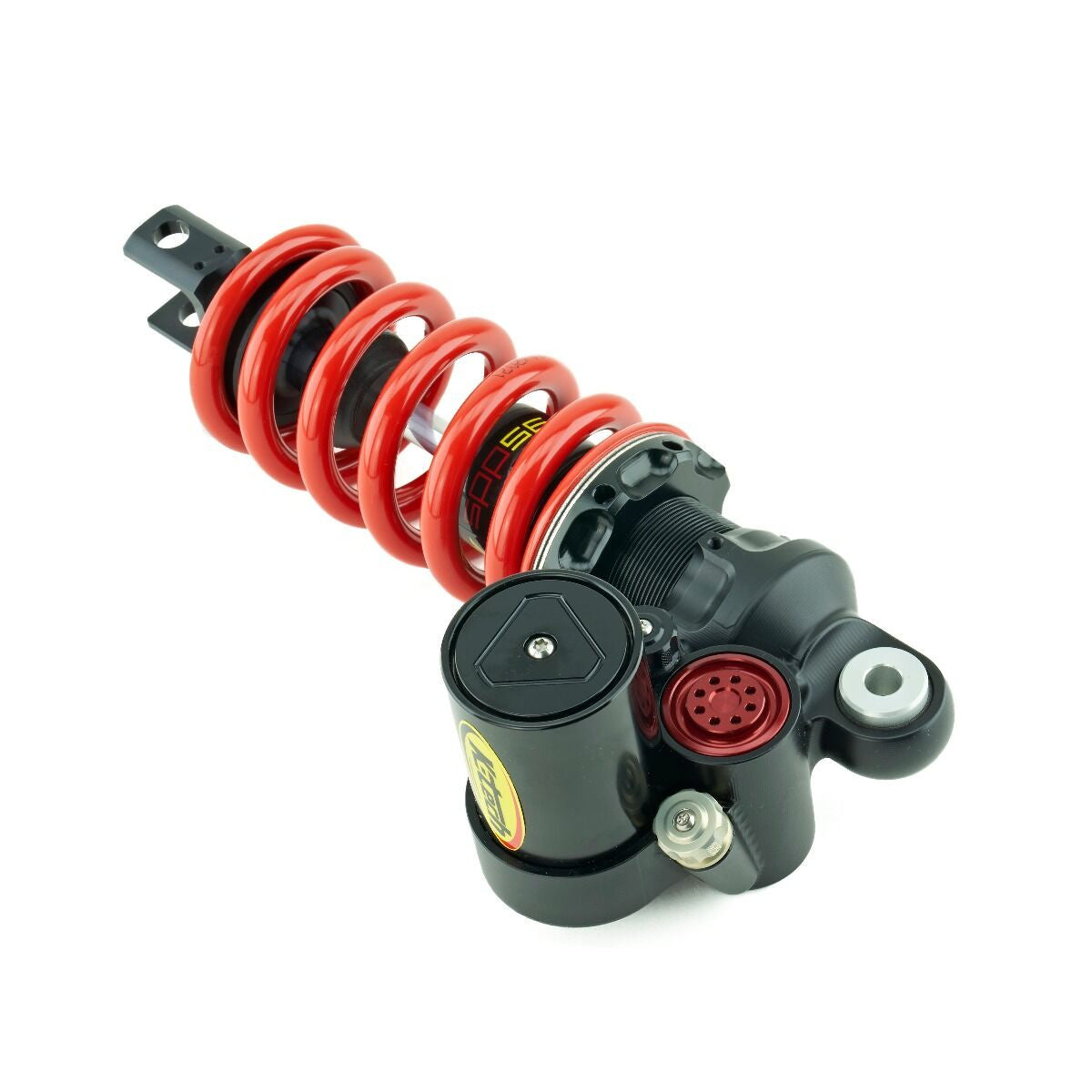

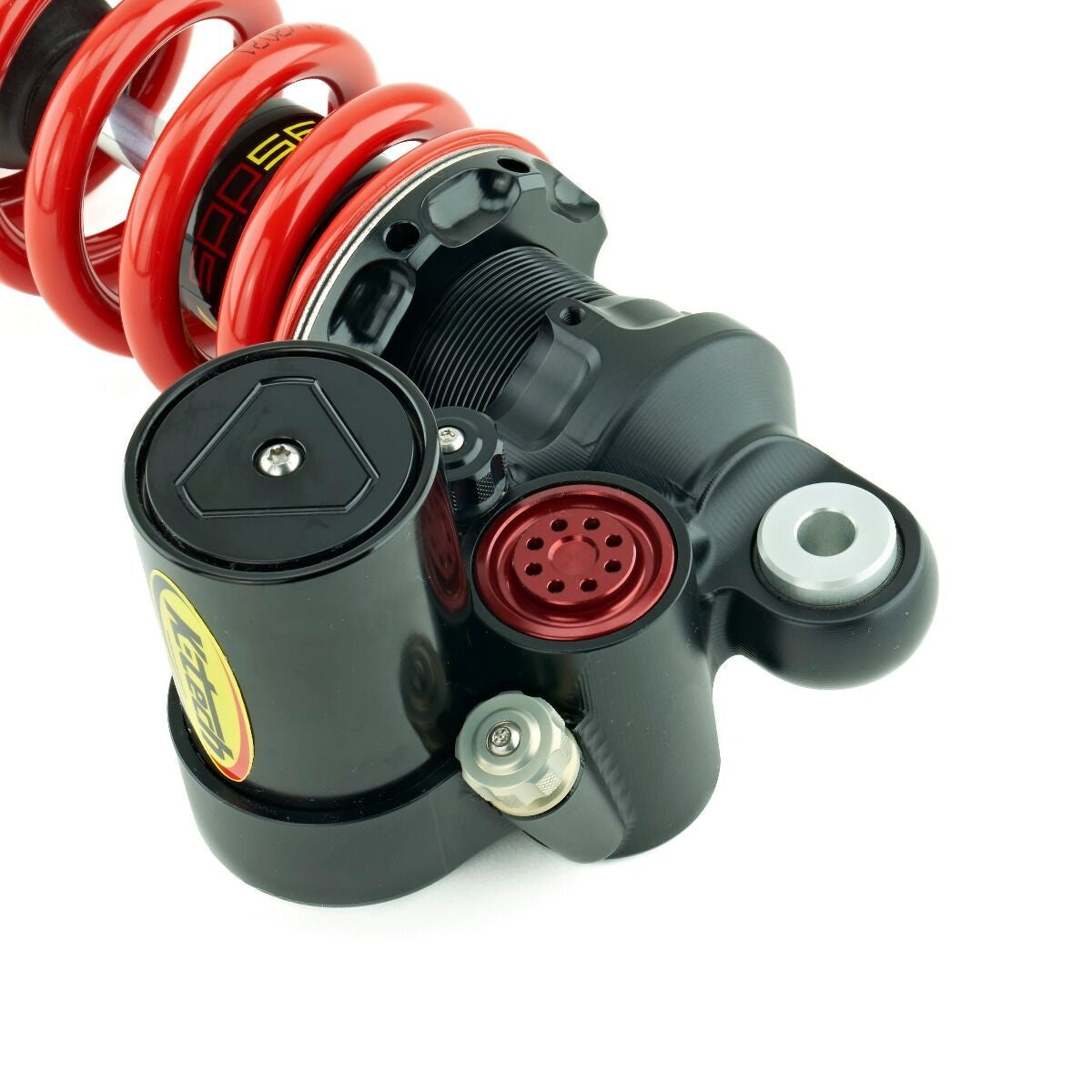

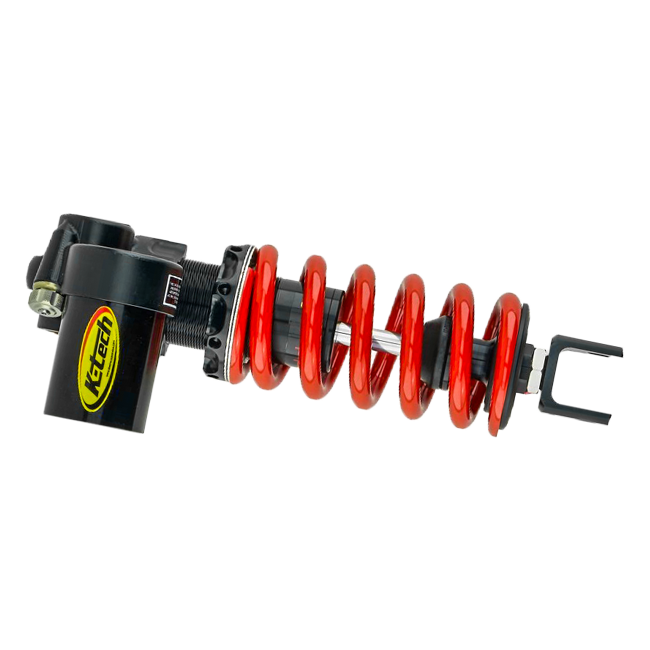

K-Tech DDS Lite Federbein for Yamaha YZF-R6 RJ27 (2017–2025) -High-performance damping for the street and race track
The K-Tech DDS Lite Federbein was specifically for the Yamaha YZF-R6 RJ27 (17–25) Developed and offers demanding drivers a first -class performance at an attractive price. It is based on the high -quality components of the DDS Pro-S version, however, does without the hydraulic spring preload setting and the special bypass valve. The full performance is preserved and the shock absorber can be on the Per-specification can be upgraded.
Product highlights:
- 4-way adjustable For optimal chassis adjustment
- 32 clicks compression adjustment For precise damping setting
- 32 clicks backstream damping For maximum control
- Manual spring preload setting For flexible adaptation
- Length adjustment To fine -tune the vehicle geometry
- CNC milled components For maximum stability and durability
- DDS technology With assembly points for potentiometers
- Upgrade From Lite to Pro specification
- Large selection of spring thicknesses available
Technical data:
- Feder: 55-155 series
- Length: 295 mm
- Sku tolerance: -0/+6 mm
- Hub/Stroke: 60 mm
- Power: 95 N
- Power in cash: 5.00
- Upper bracket: Eye | Width: 30 mm | Bolt diameter: 10 mm
- Lower bracket: Fork | Width: 30 mm | Bolt diameter: 12 mm
- Compression clicks: 12 (recommended)
- Rebound clicks: 16 (recommended)
- Preliminary tension: 11 mm (recommended)
- RCU setting paths: 4 mm
- Diameter RCU housing: 35 mm
- Diameter RCU rod: 12 mm
Mounting instructions: For maximum security and optimal performance, we recommend installation by an authorized K-Tech Service Center. The professional installation requires special tools and techniques.
Article number: 245-017-270-010
