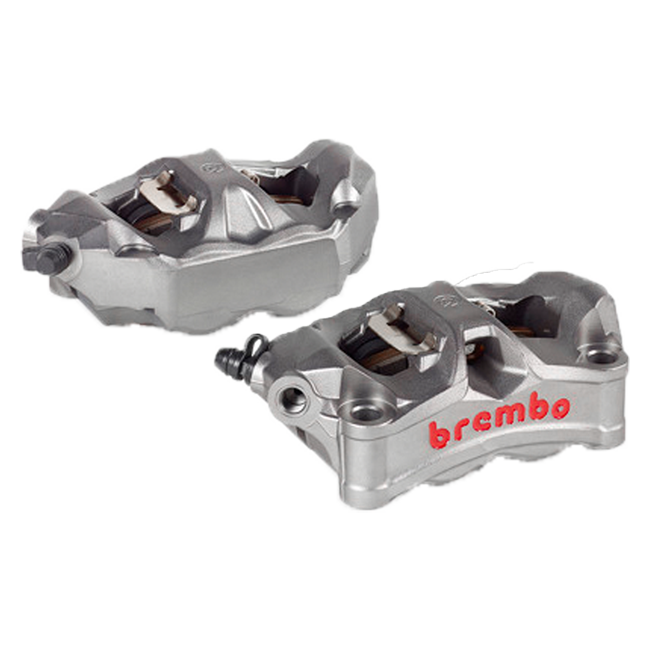

Brembo Radial Stylema Monoblock Brakezangen Kit - 100mm (220d02010)

The Brembo Radial Stylema Monoblock Brakezangen Kit Combines technical innovations with high functionality and impressive design. Even more compact and lighter than the Brembo M50 monoblock tongs, these cast brake tongs offer previously unmatched performance. Perfect for demanding drivers who are looking for the highest precision and reliability.

Important NOTE:

Only suitable for forks with 100 mm hole spacing!

For permanent use on the race track, the use of motorcycles with a displacement of 1000cc or more is not recommended, but occasional race track operations are unproblematic.

Technical data:

• Cologne diameter: 30 mm
• Brake body: Monoblock
• Number of pistons: 4
• Friction slope: For 34 mm brake ring (original discs)
• Offset: 30 mm
• Brake disc strength: A maximum of 6 mm (optimally 5.5 mm)
• Brake fluid: Suitable for DOT 4 or 5.1
• Including brake pads: Brembo High Performance Sinter TT (07BB3793)
• Weight reduction: Even lighter than the M50 monoblock through topology -optimized production
• Optimized cooling: Improved air circulation and optimized channels for brake fluid
• Finish: Titanium Gray (Ti.ha.), hand-painted red Brembo logo

Special features:

• Anti-vibration spring: For the brake pads.
• Spare parts:
  • Ventilation screw: 05338752
  • Dust cap for ventilation screw: 05150220
  • Dichtsatz: Available on request.

Scope of delivery:

• 2 stylema monoblock brake tongs
• A set of Brembo High Performance Brake pads Sinter TT (07BB3793).
• Brembo stickers and thermal tapes.
